Spring Ring Tension Scientific Test Methods

The scientific test method of spring coil tension mainly includes the following steps and points:

1. spring ring test equipment and preparation

Tension scientific test equipment

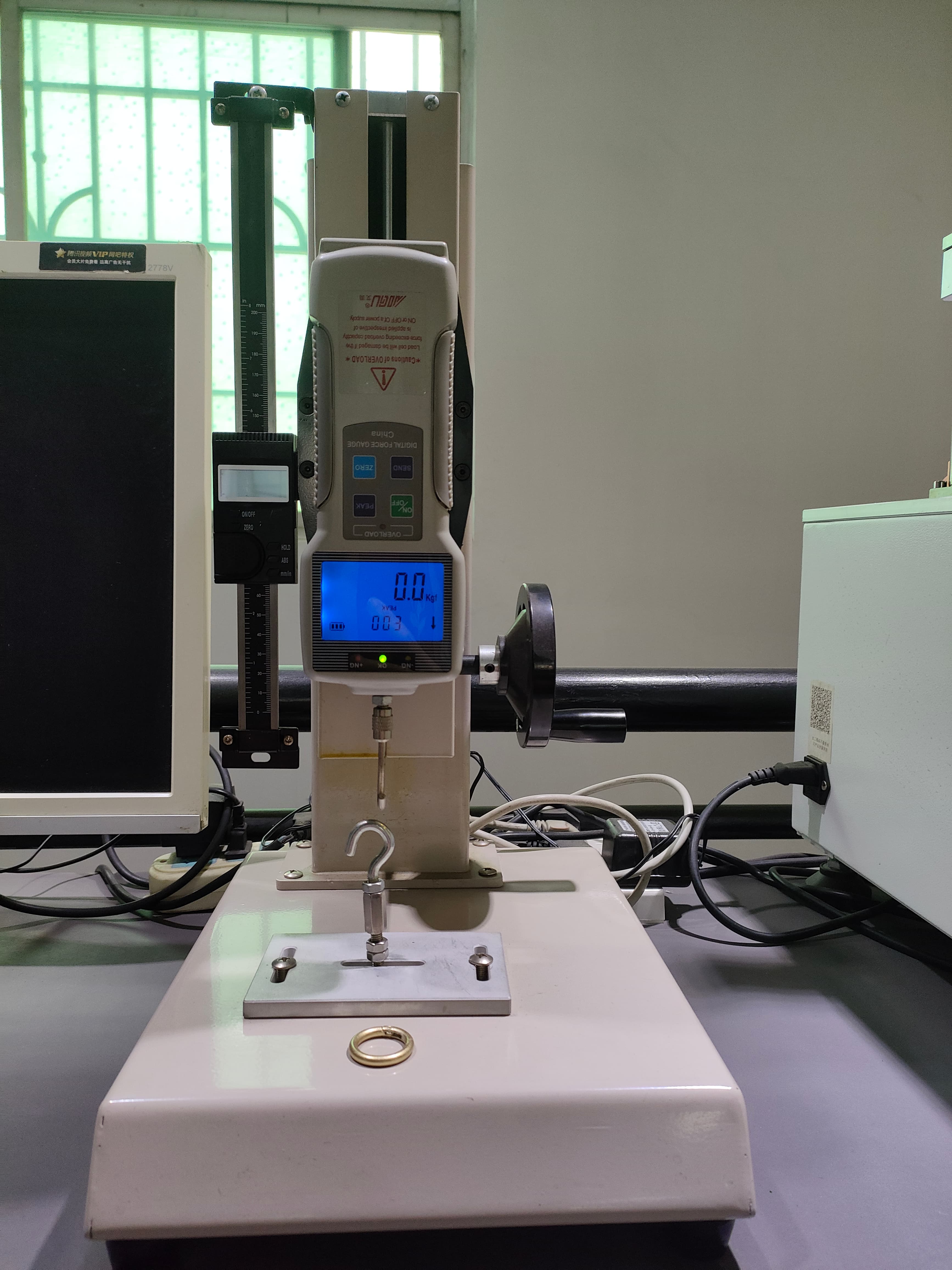

Spring tension testing machine: this is a specialised equipment for testing spring tension, which can accurately measure the deformation of the spring under different tensile forces and record the relevant data. Spring tension tester has a variety of models and specifications, according to the test requirements to choose the appropriate equipment.

Dynamometers: Used to measure the amount of pulling force to ensure that the accuracy meets the test requirements.

Clamp: Used to fix the spring ring to ensure the stability of the spring during the test.

Displacement transducer: Used to measure the spring’s deformation to improve the accuracy of the spring ring tension test.

Tension scientific test Pre-test preparation

Check the equipment: Make sure the spring tension tester, force gauge, fixture and other equipment are in good condition without damage or error.

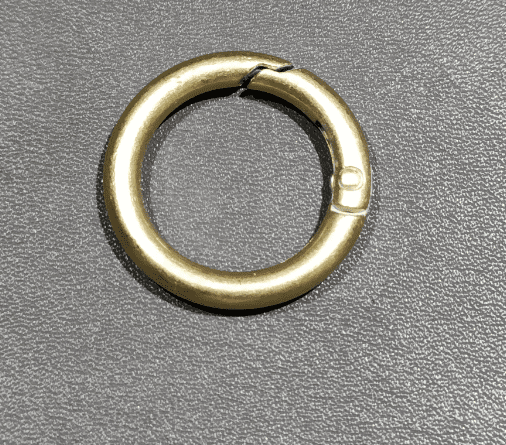

Selection of springs: Select suitable springs according to the test requirements and record the specification parameters of the springs (wire diameter, external diameter, free length).

Environment control: Ensure that the testing environment of spring ring is stable and avoid the influence of temperature, humidity and other environmental factors on the test results.

2, spring ring test steps

Installation

Spring ring install on the fixture of the spring tension tester ,ensuring that the spring is firmly fixed without shaking or offset.

Set the test parameters

According to the test requirements,set the parameters of the tensile testing machine , such as loading speed, maximum pull force, etc.

Make sure the force gauge and displacement transducer are properly connected and calibrated.

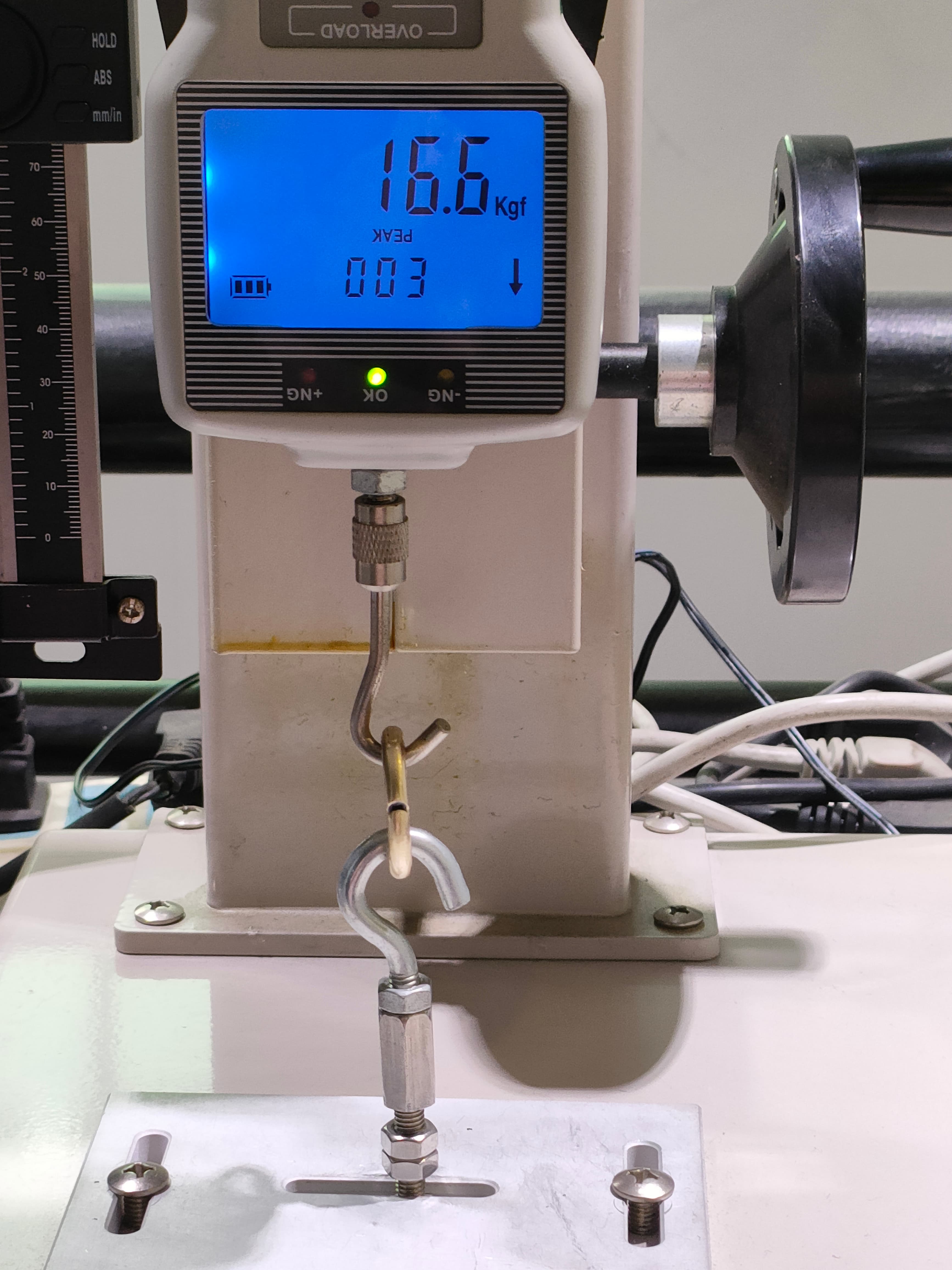

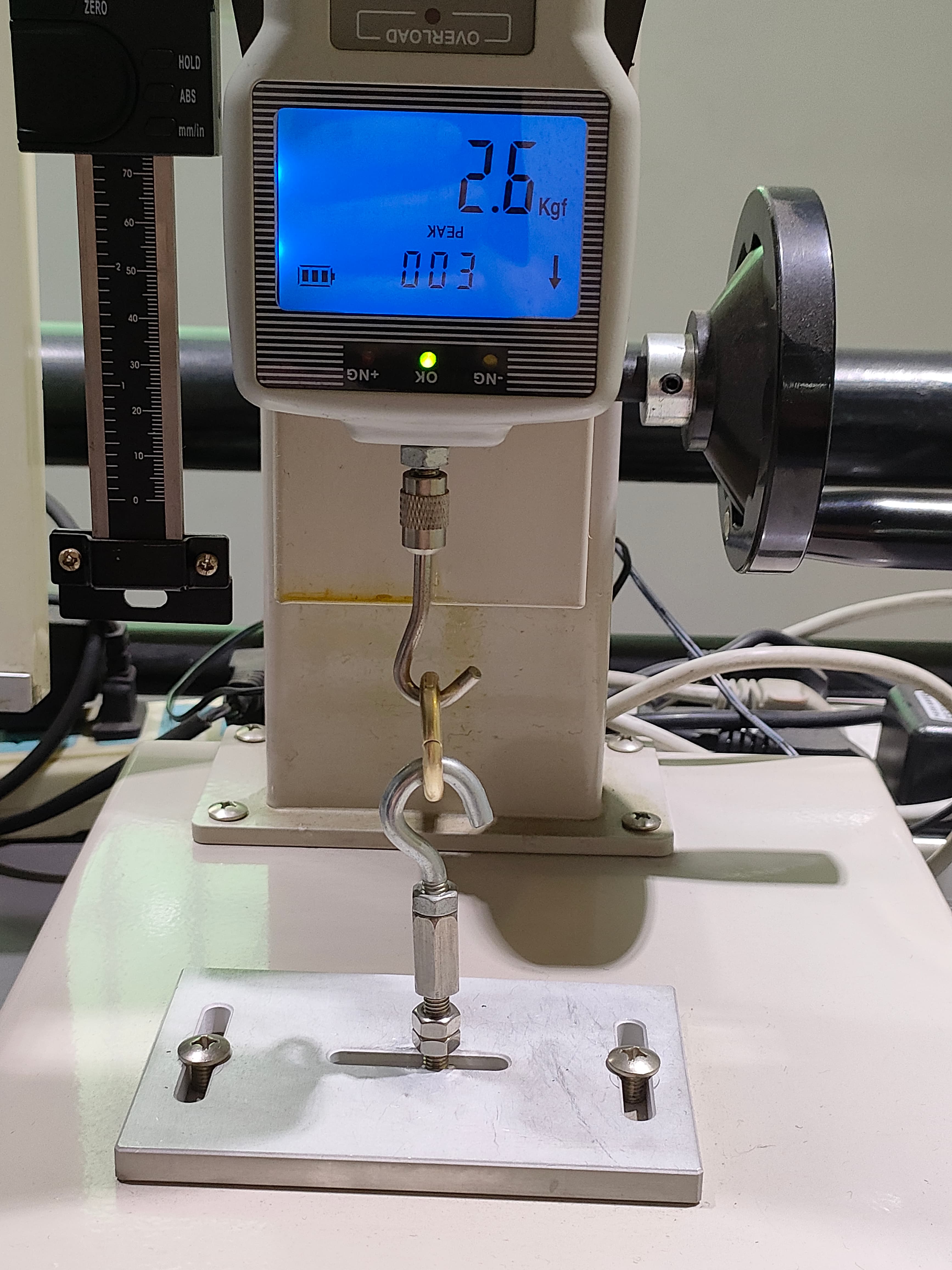

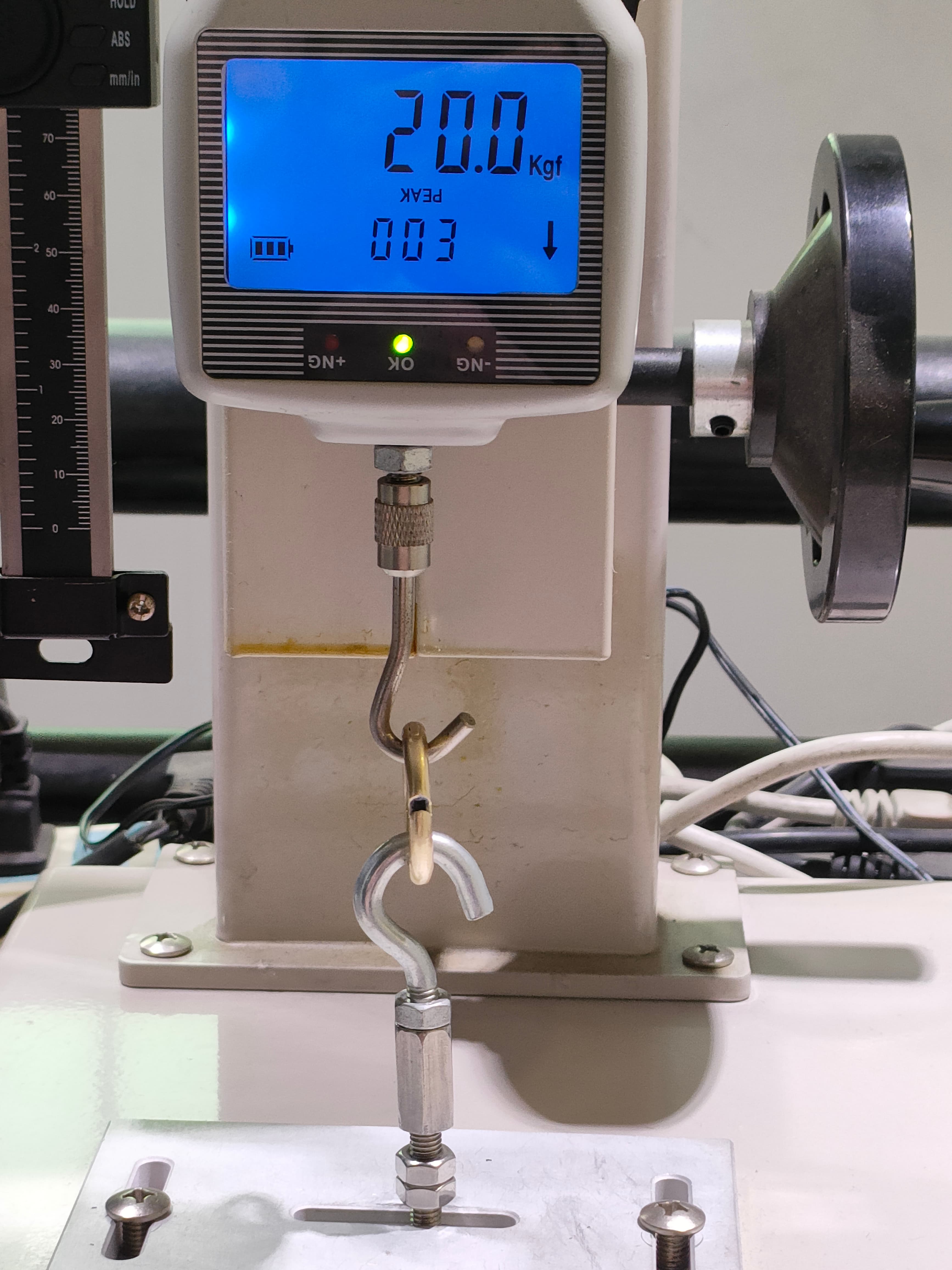

Perform the test

Start the tensile testing machine, load the tension force at a constant speed ,while recording the data from the force gauge and displacement transducer.

During the test, observe the deformation of the spring ring to ensure that the test process is safe and stable.

Repeat the tension test

In order to improve the accuracy of the spring ring tension test, need to repeat the test several times and take the average value as the final result.

3. spring ring data analysis and processing

Data recording

Record the value of tension and corresponding deformation of each test, and form a data table or curve diagram.

Data analysis

According to the recorded data, calculate the coefficient of elasticity (coefficient of strength) and other mechanical properties of the spring.

The data is analysed for compliance with Hooke’s Law and other theoretical models to assess the mechanical properties of the spring ring

Error Analysis

Identify possible sources of error in the testing process, such as equipment accuracy, reading errors, environmental factors, etc.

Quantify and analyse the errors and assess their impact on the test results.

4. draw conclusions

Based on the test results, assess whether the mechanical properties of the spring meet the design requirements or usage needs.

Suggest improvement or optimisation solutions for subsequent product design or production.
